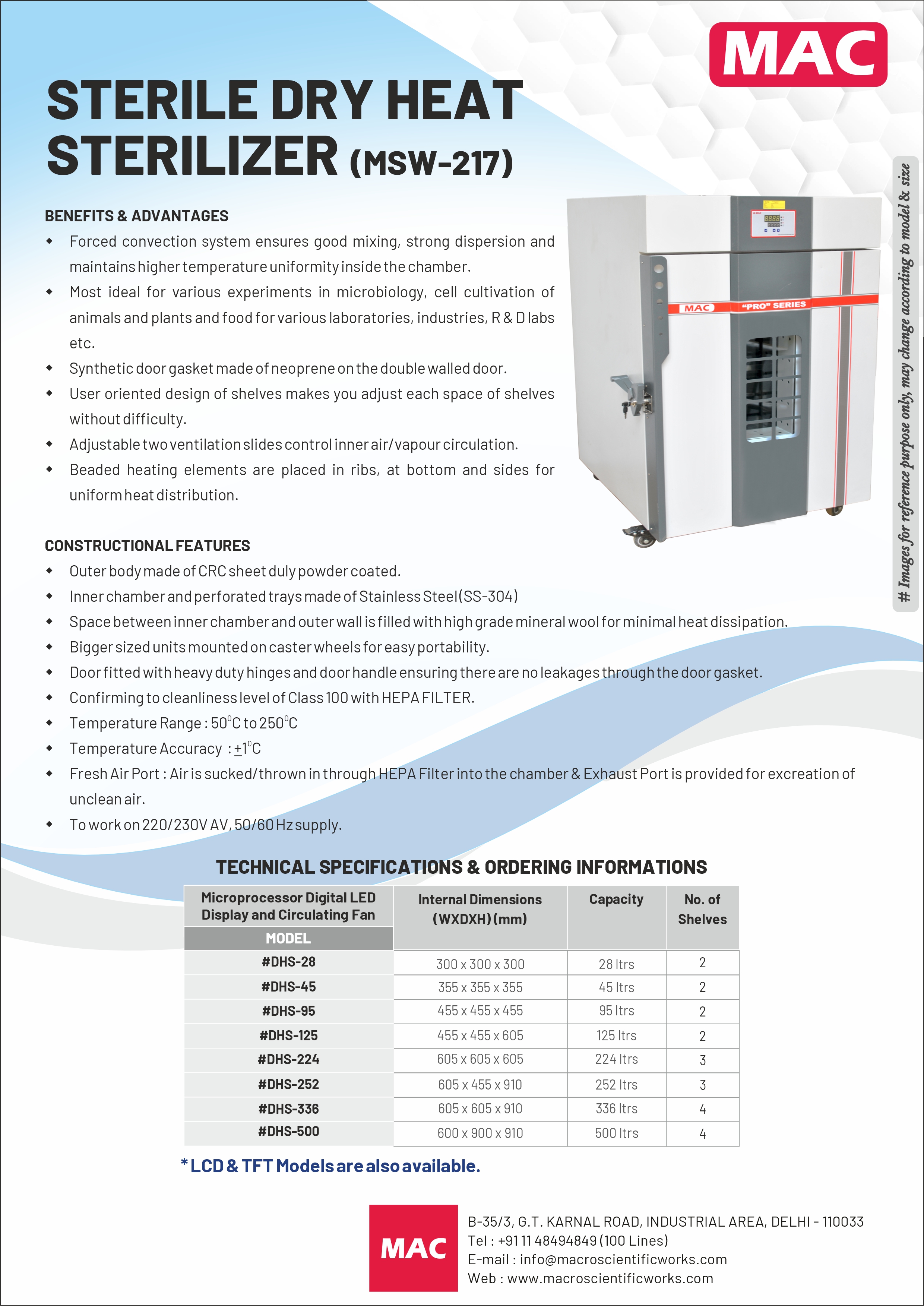

STERILE DRY HEAT STERILIZER “MAC” MSW-217

Specially designed for sterile dry heat applications where fresh air suction inlet through HEPA filter is required.

BENEFITS & ADVANTAGES

  • Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
  • Most ideal for various experiments in microbiology, cell cultivation of animals and plants and food for various laboratories, industries, R & D labs, etc.
  • Synthetic door gasket made of neoprene on the double-walled door.
  • User-oriented design of shelves makes you adjust each space of shelves without difficulty.
  • Adjustable two ventilation slides control inner air/vapor circulation.
  • Beaded heating elements are placed in ribs, at bottom and sides for uniform heat distribution.

CONSTRUCTIONAL FEATURES

  • Outer body made of PCRC sheet duly powder coated.
  • Inner chamber and perforated trays made of Stainless Steel (SS-304)
  • Space between the inner chamber and the outer wall is filled with high-grade mineral wool for minimal heat dissipation.
  • Bigger sized units mounted on caster wheels for easy portability.
  • Door fitted with heavy-duty hinges and door handle ensuring there are no leakages through the door gasket.
  • Confirming to cleanliness level of Class 100 with HEPA FILTER.
  • Fresh AirPort: Air is sucked/thrown in through HEPA Filter into the chamber & Exhaust Port is provided for excretion of unclean air.
  • To work on 220/230V AV, 50/60 Hz supply.
Technical Specifications & Ordering Informations
Model#DHS-95#DHS-224#DHS-336
Dimension Internal (mm)455x455x455605x605x605605x605x910
Capacity95 ltrs224 ltrs336 ltrs
No. of Shelves223
Temperature Range50˚C to 250˚C ±1˚C
Forced ConvectionAvailable with forced convection system (Standard Features)
Temp. ControllerAuto time Control Microprocessor (SAD) With Digital Timer
RegulatorSolid state electronic relay with protective heat sink
Safety DeviceOver temperature limiter switch prevents overheating
