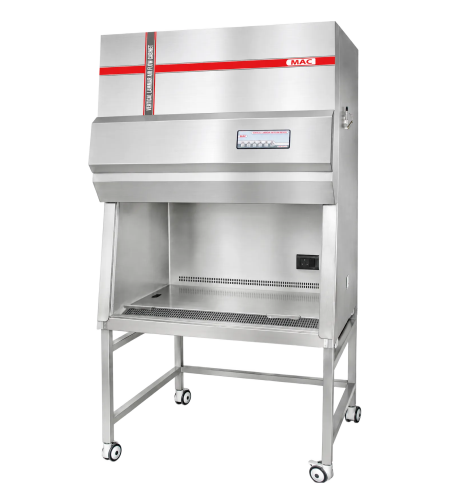

VERTICAL LAMINAR AIR FLOW CABINET “MAC” MSW-162

Down flowing Minipleat HEPA filttered air with 99.999% down to 0.3 μ guarantees sample protection. Ideal for applications in microbiology, biotechnology, foresic, research labs, hospitals etc.

Download Brochure

Features

  • Designed so as to meet the requirements of US Federal Standard 209 B (BS 5295) providing particle free air to meet class 100 conditions.
  • Cabinet is fabricated of mild steel sheet duly powder coated.
  • Working table is made of Stainless Steel Sheet (SS-304 grade).
  • Front door is made out of thick transparent plexiglass.
  • Air drawn through pre-filter is made to pass through highly effective HEPA (High-Efficiency Particular Air) filters having an efficiency rating.
  • Heavy Duty Motor operates with a minimum noise level.
  • Using a dynamic machine, the blower and motor assembly are statically & dynamically balanced.
  • Working area is illuminated by fluorescent lighting fitted to the unit.
  • Supplied complete with S.S. Table Top, Transparent front door, Static Pressure Manometer, Built-in U.V. Germicidal light and Cock for gas, air or vacuum line, HEPA filters and pre-filter.
  • Air drawn through pre-filter is made to pass through highly effective HEPA (High-Efficiency Particular Air) filters. The prefilter fitted extends the life of the HEPA filter drastically. Fitted with HEPA Filter made from water-resistant, fire retardant, imported microfine glass fiber media; conforms to EU – 14 Grade, with an efficiency rating better than 99.999% for 0.3 μ. These filters are designed to accommodate higher air flow volume.
  • Prefilter is made from Non-Woven Synthetic with HDPE mesh and Al expanded mesh on air leaving side; conforms to EU – 4 / G-4 Grade, with the efficiency of down to 10 microns. These filters can be cleaned by compressed air & also washable.
  • Mounted on heavy tubular stand with lockable castors.
  • With Solid Side Walls and transparent front door.
  • To work on 220/230 volts A.C. supply.

Technical specifications and Ordering information

  • Purity: Confirming to class 100 conditions
  • Main filter: HEPA Filter made from water-resistant, fire retardant, imported microfine glass fiber media; conforms to EU - 14 Grade, with an efficiency rating better than 99.999% for 0.3 μ. These filters are designed to accommodate higher air flow volume.
  • Prefilter: Prefilter is made from Non-Woven Synthetic with HDPE mesh and Al expanded mesh on air leaving side; conforms to EU – 4 / G-4 Grade, with the efficiency of down to 10 microns. These filters can be cleaned by compressed air & also washable.
  • Illumination: Fluorescent Lamp 40W
  • Sterilizing: UV Germicidal Tube.
  • Utility: Gas/Air cock
  • Supply Voltage & Frequency: AC 230V, 50/60 Hz

Options

  • Conversion of the above unit to near 100% exhaust of air (room to be with positive pressure) to cost extra for any model or size.
  • Virus burn out unit (only for if above option(a) is ordered)
  • Magnehelic Gauge (To track filter pressure) in lieu of static pressure manometer.
  • Electronic Filter choke alarm. (Differential pressure monitor)
  • Microprocessor-based digital controller with LCD display.
  • Microprocessor-based digital controller with LCD display with air velocity sensor and digital display of air velocity across the worktable.
  • Spare U.V. Germicidal Tube (1.5 feet)
  • Spare U.V. Germicidal Tube (3.0 feet)
Technical Specifications & Ordering Informations
ModelLV-22LV-32LV-42LV-62LV-82
Inner Dimensions (L x W x H)(mm)600×610×675900×610×6751200×610×6751800×610×6752400×610×675
NO. of HEPA Filter11122
