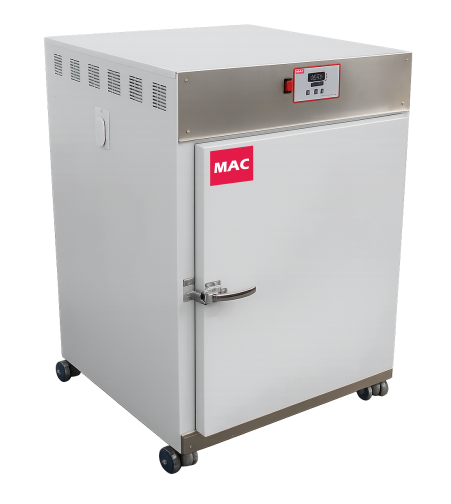

HOT AIR OVEN UNIVERSAL DIGITAL (MEMMERT TYPE) “MAC” MSW-211

Forced convection digitally controlled systems suitable for precise heating drying and various other laboratory drying applications requiring controlled heating zone.

Download Brochure

Features

  • Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
  • Most ideal for various experiments in microbiology, cell cultivation of animals and plants and food for various laboratories, industries, R & D labs, etc.
  • Synthetic door gasket made of neoprene on the double-walled door.
  • User-oriented design of shelves makes you adjust each space of shelves without difficulty.
  • Adjustable two ventilation slides control inner air/vapor circulation.
  • Beaded heating elements are placed in ribs, at bottom and sides for uniform heat distribution.

Constructional Features

Outer body made of CRC Sheet duly powder coated Inner chamber and adjustable trays are made of Stainless Steel (SS-304 grade). Gap between the inner chamber and the outer wall is filled with high-grade mineral wool for minimal heat dissipation.Bigger sized units mounted on caster wheels for easy portability.Door fitted with heavy-duty hinges and door handle ensuring there are no leakages through the door gasket.Temperature Range: 50˚C to 250˚CTemperature Accuracy: ±1˚CTemp. Controller: Microprocessor-based PID Digital Temperature Indicator cum Controller to control the chamber temperature with LED Display Type: Available with forced convection systemRegulator: Solid-state electronic relay with protective heat sinkSafety Device: Over-temperature limiter switch prevents overheatingTo work on 220/230V AV, 50/60 Hz supply.

Technical Specifications & Ordering Informations
ModelInternal Dimension (WXDXH) (mm)CapacityHeat LoadNo. of Shelves
OVEN UNIVERSAL DIGITAL MODEL WITH LED DISPLAY
#OUD-28300x300x30028 ltrs0.50 KW2
#OUD-45355x355x35545 ltrs0.50 KW2
#OUD-95455x455x45595 ltrs1.00 KW2
#OUD-125455x455x605125 ltrs1.00 KW2
#OUD-224605x605x605224 ltrs1.50 KW2
#OUD-252605x455x910252 ltrs1.50 KW3
#OUD-336605x605x910336 ltrs1350 KW2
#OUD-500600x900x910500 ltrs2.75 KW3
#OUD-750900x900x900750 ltrs3.0 KW3
#OUD-1000900x900x12001000 ltrs4.0 KW3
OVEN UNIVERSAL MICROPROCESSOR BASED AUTOMATIC DIGITAL MODEL WITH LED DISPLAY
These units are featured with Microprocessor Based AUTOMATIC DIGITAL TEMPERATURE INDICATOR-CUM-CONTROLLER with an in-built DIGITAL TIMER to control the temperature from 50˚C to 250˚C. Once the unit is switched “ON” heating starts automatically and once the set/desired value is achieved the in-built AUTOMATIC DIGITAL MINUTE TIMER starts automatically. Once this set time period is over the heaters are switched “OFF” automatically and the unit sounds a BUZZER, thus alerting the user that process is complete.
#OUD-28(FAD)300x300x30028 ltrs0.50 KW2
#OUD-45(FAD)355x355x35545 ltrs0.50 KW2
#OUD-95(FAD)455x455x45595 ltrs1.00 KW2
#OUD-125(FAD)455x455x605125 ltrs1.00 KW2
#OUD-224(FAD)605x605x605224 ltrs1.50 KW2
#OUD-252(FAD)605x455x910252 ltrs1.50 KW3
#OUD-336(FAD)605x605x910336 ltrs1350 KW2
#OUD-500(FAD)600x900x910500 ltrs2.75 KW3
#OUD-750(FAD)900x900x900750 ltrs3.0 KW3
#OUD-1000(FAD)900x900x12001000 ltrs4.0 KW3
